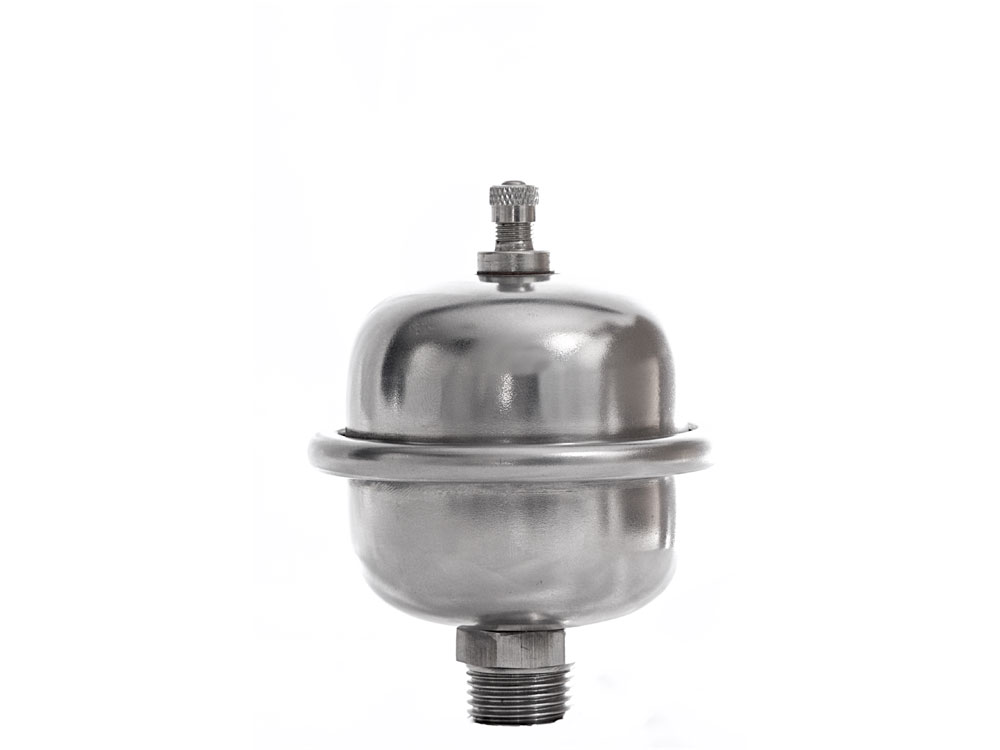

Multifunction vessels water hammer arrestor ACX series
The ACX series expansion tanks are made of stainless steel with fixed membrane made of butyl.
Their operating temperature varies between -10°C and +100°C.
The ACX series expansion tanks are available in different sizes:
» 0,16 lt.
» 0,5 lt.
» 1 lt.
» 2 lt.
Stainless steel sheet AISI 304 certified 3.1.
Butile high resistance. Fatigue tests on the entire range 50,000 cycles.
Glossy scratch-resistant satin finish on the entire range. Individual testing on the entire range. Product identification label showing individual serial number.
Nominal operating pressure
10 bar on entire range. 15 bar per ACX 0.16 e ACX 0.16 B. Operating temperature: -10 ° C + 100 °. Precharge factory: 3.5 bar.
Conformity to DIR. 2014/68/UE ART4.3. Available QR label instructions.
Prevent water hammer. Prevent micro pressure drops. Prevent vibrations and noises. Protection for valves, solenoid valves, fittings, filters, hydraulic components in general.
Fields of application
Civil, industrial, naval, automotive, food, chemical, heating systems, solar panel systems, heat recovery systems, cogeneration plants, sewage treatment plants, prefabricated units livestock facilities, furnishing of technical rooms high aesthetic /
visual impact. Agents for use in extreme environments..
EPDM membrane. WRAS membrane. Precharge 0.5-6 bar. Stub coupling personalization.
Packaging on single box. Multiple box available for:r: Packing of 10 pieces for ACX 0.16, ACX 0.16B and ACX 0.30 ACX 0.5 includes 4 pieces ACX 1 pack of 1 piece Recyclable cardboard “green”. Multiple package of European pallets cm120x80.
